High Bending Strength Atomizing Spray Nozzle High Resistance To
Bonding
Dimension:Various Size

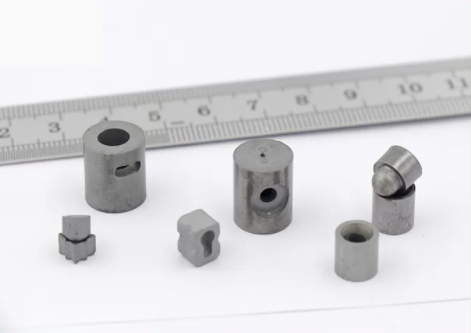

Product Name:Hard Alloy Tungsten Carbide Nozzle
Properties:High Hardness,excellent Wear Resistance
Performance:Excellent Abrasive Cofficient
Application:Transportation, Agricultural Production Surface:Ground, Polished,
Or Blanks, Sand Blasted
High Light:air atomising nozzles, spraying systems air atomizing nozzle
Product specification:
1.100% raw material to produce tungsten carbide products.
2. Hip sintered, high hardness, high wear resistance
3. Various sizes and full types available
4. Reasonable price,Fast delivery time
5. OEM Customized(small order accepted,professional technical
support)
6.ISO 9001 Certification
More details of specific type, please inform us
| Grade | ISO Grade | cementing Phase | Density g/cm3 | Hardness HRA ≥ | T.R.S ≥MPa | Grain Size μm | Performances & Recommended applications |
| GS02Q | K20 | 6 | 14.93 | 90.2 | 2700 | 2.0 | Suitable for medium and low air pressure of cold rock drill bit,
drilling in the hard rock. |
| GS01Q | K20 | 7 | 14.88 | 89.5 | 2800 | 2.0 | Applied to medium and low air pressure of cold rock drill bit, good
toughness, suitable for drilling in hard rocks and the gravel. |
| GS35T | K30 | 10 | 14.6 | 89.0 | 2900 | 2.0 | Suitable for welding of rock drill bit, drill in hard rock. |
| GS13W | K40 | 13 | 14.2 | 86.5 | 2800 | 5.0 | Mainly applied to the buttons of tricone bits and inserts of rotary
percussion bits to cut hard and very hard formations.
|
Nozzles are a very important part of spray, fuel injection,
sandblasting equipment, or even the main components.
The atomizing nozzle is a device capable of atomizing a liquid and
uniformly suspending it in the air. The working principle is that
the internal liquid is squeezed into the nozzle by internal
pressure, and a piece of iron is placed inside the nozzle, and the
high-speed flowing liquid hits the iron piece, and after
rebounding, atomized particles having a diameter of about 15-60 μm
are formed, and Sprayed through the nozzle outlet. Atomizing
nozzles are widely used in a variety of spray products, such as
insecticides, air fresheners, and pharmaceutical sprays.
The atomization technology covers almost all industrial fields,
such as transportation, agricultural production, and people's daily
life. In addition to the combustion of various fuels (gas, liquid
and solid fuel), atomization technology in non-combustion
industries such as catalytic production Granules, food processing,
powder coating, and pesticide spraying are also widely used.
1. Hard metal / Carbide Performance: High strength in use, impact
and shock resistance, but wearresistance and cutting speed
comparatively lower, roughing of cast irons, nonferrous metals and
alloys as well as non metallic materials at low cutting speed.
2. Hard metal / Carbide Grade: ISO K10 K20 K30
3. We can provide various hard metal / carbide nozzles according to
the drawing and sample.
Advantages:
- High strength and extreme hardness
- High temperature resistance and excellent thermal shock
resistance
- Excellent bearing capacity
- Resistance to extreme heat and cold.
- High temperature creep resistance
- Corrosion resistance and Oxidation resistance
- Acid and alkali resistance
- Wear resistance& good thermal conductivity
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer of tungsten carbide since 2006. We can
supply 20 tons tungsten carbide product per month. We can provide
customized carbide products as per your requirements.
Q: How long is your delivery time?
A: Generally,it will take 7 to 25 days after order confirm.The
specific delivery time depends on the specific product and the
quantity you needed.
Q: Do you provide samples? iIs it free or charged?
A:Yes, we can offer a sample for free charge but the freight is at
customers’ cost.
Q. Do you test all your goods before delivery?
A: Yes, we will do 100% test on our cemented carbide products
before delivery.
