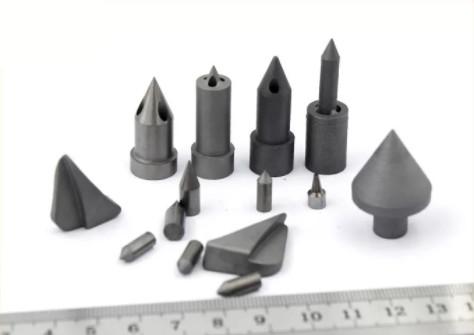

Anti - Skid Stud Tungsten Carbide Pins Silver Gray For Window
Breaker
Place Of Origin:Hunan, China (Mainland)
Model Number:Various
Type:Power Tool Parts
Commodity Name:Tungsten Carbide Pins
Material:100% Virgin Tunsten Carbide
Performance:High Hardness,wear Resistance Etc.
High Light:tungsten carbide dowel pins, carbide pins
Product description
Tungsten carbide pin is a composed of refractory alloys used in the
instrument of super sharp electrode, said there is a blunt and
sharp bottom electrode, the vertical axis of super large electrode
cylindrical refractory alloy composition, and can change cycle
cancellation and molten pool bar.
Application for Tungsten Carbide Pin
The small tungsten carbide pin was used as pilot pin or sometimes
known as an ejector pin is an essential part of high speed steel &
carbide tipped annular cutters.
The tungsten carbide pin through the center of the annular cutter
to:
• Help the operator set the precise location to drill
• Guide a steady flow of cutting fluid to the cutting edges
• Eject the slug when the cutter has completed the hole
Size Selection
We offer different sized carbide pin depending on your needs.
We provide other sizes upon request. Please feel free to contact
us.
| Grade | Cobalt Content
(WT-%) | Density g/cm3 | Bending Strength
N/mm² | Rigidity
HRA |
| YG6X | 6 | 14.95 | 1810 | ≥91.5 |
| YG6 | 6 | 14.95 | 1710 | ≥90.5 |
| YG8X | 8 | 14.75 | 2430 | ≥90 |
| YG8 | 8 | 14.75 | 2230 | ≥89.5 |
| YL10.2 | 10 | 14.6 | 2800 | ≥91 |
| YG11 | 11 | 14.3 | 2200 | ≥88 |
| YG11C | 11 | 14.3 | 2400 | ≥86.5 |
| YG15 | 15 | 14.1 | 2400 | ≥87 |
| YG15C | 15 | 14.1 | 1600 | ≥84 |
| Item | Tungsten carbide pins |
| Grade | YG6, YG8, YK05, KK06H, YG8C, ZD15, YG9C, YG10C, YG11C, YG13C,
YG15C, YG15. |
| Sizes | customized or standard |
| Brand | Golden Ants |
| Country of Origin | Zhuzhou, China |
| Usage | bush hammer, safety hammer, round litchi mill |
Features:
1.High durability,precision,wear resistance,toughness and
combination abilities.
2.Good straightness,the roundness and surface roughness of finish
ground rods are satisfactory
Some Products based on our new designs:
We not only produce the standard types, but also the carbide parts
based on your designs. We have rich experience on this and a big
part of our product is from our clients' designs. We can provide
the technical support, like how to select the right grade of
carbide to match your using purpose, we will make it very easy and
simple to do business with us.
Our Service
1. Good and stable quality based on our strict quality control
system.
2. Fast delivery based on our high production capability.
3. Technical support based on our professional technical team.
4. Simply and easy to do business, to save your time, money and
energy.
