    Cemented Tungsten Carbide Spherical Bit Buttons Hard Alloy Engineering Mining Material

    Ask Lasest Price
    Brand Name : OEM
    Model Number : customized
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100,000 kg
    Delivery Time : 5 ~ 15 working days
    • Product Details
    • Company Profile

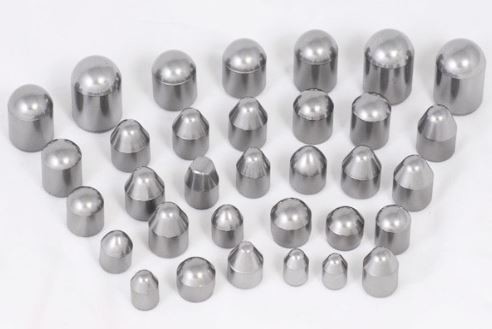

    Cemented Tungsten Carbide Spherical Bit Buttons Hard Alloy Engineering Mining Material

    Cemented Tungsten Carbide Spherical Bit Buttons Hard Alloy Engineering Mining Material


    Product Description


    Cemented Carbide Buttons are used for high and low pressure DTH drill and hydraulic screw-in drill

    and so on, suitable for hot insert or cold pressing bit inserting process, with some of he materials used

    in the welding process. These products are stable in quality, excellent in performance, meeting or exceeding

    domestic advanced level, and with complete product variety and first-class service.


    Material Introduction


    Code of

    Material

    Density

    (g/cm3±0.1)

    Coercive Force (KA/M)

    Hardness

    (HRA) ± 0.5

    Flexural

    Strength (Mpa)

    Application


    KK0614.9511.3-12.790.02500

    - Low wind pressure DTH drill bit, suitable for medium-soft rock formation.

    - Small diameter hot insert or cold pressing tapered bore connection drill, suitable for medium-soft and hard rock formation.

    KK06H14.9511.5-12.590.52900

    - High wind pressure DTH drill bit, suitable for hard and very hard rock formation.

    - Hydraulic screw-in drill bit, suitable for hard and very hard rock formation.

    KK06L14.9811.8-12.890.83000

    - High wind pressure DTH drill bit, suitable for hard and very hard rock formation

    - Hydraulic screw in drill bit, suitable for very hard rock formation

    - The product has better performance in impact resistance and abrasion resistance and so on, suitable for complex rock formation.

    KK3014.727.6-9.689.02800

    - Mainly used for welding class of small diameter drill, suitable for digging and mining of iron ore, metal and coal.

    - Available for large diameter low pressure DTH drill bit, suitable for complex medium soft rock formation.

    KK3814.525.5-8.587.52900- Suitable for large diameter DTH drill bit, drilling into medium hard and hard rock formation.
    KK4014.425.5-7.587.03000- Adapted to the high hardness, high toughness shaped drill, suitable for complex very hard rock formation.


    Product Specification


    Cemented Tungsten Carbide Spherical Bit Buttons Hard Alloy Engineering Mining Material

    Item No.Basic Size (mm)
    Diameter (D)Height (H)Sphere Radius (R)
    18.2124.2
    29.2134.6
    310.2145.2
    411.2156.0
    512.2176.6
    613.2196.7
    714.3227.2
    816.3248.8
    918.3279.2
    1019.2259.6
    1120.22810.2
    1222.23011.2
