Anti Corrosion Carbide Drill Rod / Cemented Carbide Bar Several Helex

    Buy cheap Anti Corrosion Carbide Drill Rod / Cemented Carbide Bar Several Helex from wholesalers

    Buy cheap Anti Corrosion Carbide Drill Rod / Cemented Carbide Bar Several Helex from wholesalers
    • Buy cheap Anti Corrosion Carbide Drill Rod / Cemented Carbide Bar Several Helex from wholesalers

    Anti Corrosion Carbide Drill Rod / Cemented Carbide Bar Several Helex

    Ask Lasest Price
    Brand Name : OEM
    Model Number : customized
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100,000 pcs
    Delivery Time : 5 ~ 15 working days
    • Product Details
    • Company Profile

    Anti Corrosion Carbide Drill Rod / Cemented Carbide Bar Several Helex

    Metal Cutting Tungsten Carbide Bar Several Helex Rods High Precision


    Product Description


    The Tungsten Carbide Rods, are used in high quality carbide cutting tools for the machining of

    heat-resistant alloys and Ti alloy, such as end mill, drill, reamer.

    GradeGrain sizeCobalt Content
    (%)
    Density
    g/cm3
    Hardness
    HRA
    TRS
    N/Mm2
    YG8Medium814.789.52200
    YL10.2Extrafine1014.4291.84000
    UF06Submicron614.993.53800
    UF12Submicron1214.0592.54000

    Grade

    Grain Size

    (um)

    Cobalt Conten

    (WT. %)

    Density

    (g/cm3)

    Hardness

    (HRA)

    T.R.S

    (N/mm2)

    ISO Code
    UF10U0.3 ~ 0.6 um1014.3592.63600k30
    UF12U0.3 ~0.6 um1214.1592.33900k40
    UF060.6 ~0.8 um614.9093.53800k05
    UF100.6 ~0.8 um1014.4291.84000k30
    UF500.8 ~ 1.2 um1514.0087.64000k40
    YG10X1.3 ~ 2.5 um1014.4391.52500k30

    Products available

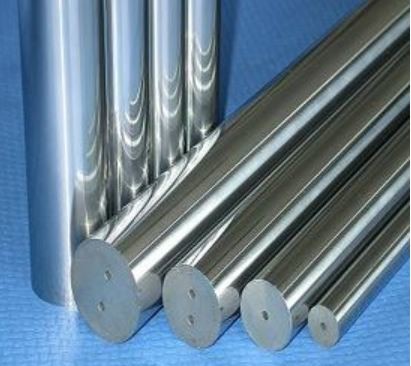

    1. solid carbide rods
    2. single central hole rods
    3. double parallel hole rods
    4. double helical 30° 40° hole rods
    5. chamfered rods
    6. other special customized rods

    Ø
    mm (sintered)
    Ø
    mm (ground)
    L
    mm
     Ø
    mm (sintered)
    Ø
    mm (ground)
    L
    mm
    Ø 2,2 +0,2Ø 2,0 h6L330+0.5Ø 16,2 +0,3Ø 16,0 h6L330+0.5
    Ø 3,2 +0,2Ø 3,0 h6L330+0.5Ø 17,2 +0,3Ø 17,0 h6L330+0.5
    Ø 4,2 +0,2Ø 4,0 h6L330+0.5Ø 18,2 +0,3Ø 18,0 h6L330+0.5
    Ø 5,2 +0,2Ø 5,0 h6L330+0.5Ø 19,2 +0,3Ø 19,0 h6L330+0.5
    Ø 6,2 +0,2Ø 6,0 h6L330+0.5Ø 20,2 +0,3Ø 20,0 h6L330+0.5
    Ø 7,2 +0,2Ø 7,0 h6L330+0.5Ø 21,2 +0,3.Ø 21,0 h6L330+0.5
    Ø 8,2 +0,3Ø 8,0 h6L330+0.5Ø 22,2 +0,3Ø 22,0 h6L330+0.5
    Ø 9,2 +0,3Ø 9,0 h6L330+0.5Ø 23,2 +0,3Ø 23,0 h6L330+0.5
    Ø 10,2 +0,3Ø 10,0 h6L330+0.5Ø 24,2 +0,3Ø 24,0 h6L330+0.5
    Ø 11,2 +0,3Ø 11,0 h6L330+0.5Ø 25,7 +0,3Ø 25,5 h6L330+0.5
    Ø 12,2 +0,3Ø 12,0 h6L330+0.5Ø 27,2 +0,3Ø 27,0 h6L330+0.5
    Ø 13,2 +0,3Ø 13,0 h6L330+0.5Ø 29,2 +0,3Ø 29,0 h6L330+0.5
    Ø 14,2 +0,3Ø 14,0 h6L330+0.5Ø 30,2 +0,3Ø 30,0 h6L330+0.5
    Ø 15,2 +0,3Ø 15,0 h6L330+0.5Ø 31,2 +0,3Ø 32,0 h6L330+0.5
